Lowpass Gate – Model 1015

The SSL 1015 Lowpass Gate is a modern “Vactrol” VCA / VCF module inspired by Don Buchla’s original 292C.  Depending on the selected mode, a lowpass gate can act as a VCA, 2-pole lowpass filter, or VCA/VCF combination which is well known for creating organic plucky sounds.  When in filter mode, the 1015 adds a unique resonance feedback which allows a variety of controlled percussive sounds and wild oscillations.

Previous lowpass gate designs used cadmium-sulfide photocells (CdS) which are currently banned in the EU and possibly several other nations.  The SSL 1015 may be one of the first to utilize a Vactrol design that replaces the CdS photocells with a newer technology – helping protect our environment and is therefore welcomed Worldwide.

An option for the CdS version is available at additional charge by direct factory request for USA based shipments only.

$275.00

In stock

SKU: SSL1015 Category:

Description

The SSL 1015 Lowpass Gate is a modern “Vactrol” VCA / VCF module inspired by Don Buchla’s original 292C.  Depending on the selected mode, a lowpass gate can act as a VCA, 2-pole lowpass filter, or VCA/VCF combination which is well known for creating organic plucky sounds.  When in filter mode, the 1015 adds a unique resonance feedback which allows a variety of controlled percussive sounds and wild oscillations.

Previous lowpass gate designs used cadmium-sulfide photocells (CdS) which are currently banned in the EU and possibly several other nations.  The SSL 1015 may be one of the first to utilize a Vactrol design that replaces the CdS photocells with a newer technology – helping protect our environment and is therefore welcomed Worldwide.

An option for the CdS version is available at additional charge by direct factory request for USA based shipments only.

Specifications

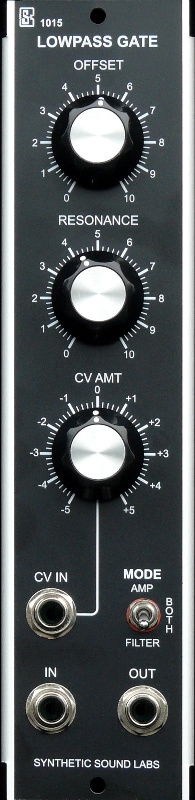

Controls

- OFFSET: Initial VCA / VCF level
- RESONANCE: Filter feedback amount (Filter mode only)
- CV AMT: FM Input with Inverting Level Control

Switches

- MODE:
Amp: Voltage Controlled Amplifier with fast on time and natural release
Both: Classic 'Lowpass Gate' Setting. Combination VCF and VCA
Filter: Resonant Voltage Controlled Lowpass Filter

Inputs

- IN: Audio Input
- CV: FM Input with Inverting Level Control

Outputs

- OUT: Audio Output

Power

+15V at 10ma, -15V at 20ma, Synthesizers.com (DOTCOM) 6 pin MTA standard.

Size

Width - One Moog Unit (MU) - 2.125" W x 8.75" H
Depth - 1.25" behind panel
